Description
the Walker VT-25 speaker system:
Product Overview:
The Walker VT-25 is a high-performance tweeter component designed and engineered by the renowned German audio brand, Walker. Established in 1996 in Richmond, Germany, Walker has been a leading innovator in the mobile audio industry, creating exceptional sound equipment for discerning audiophiles.
Specifications:
The VT-25 features a 1-inch silk dome tweeter with a Neo magnet design. It has a peak power handling of 30 watts (15 watts RMS) and an impedance of 4 ohms. The frequency response range of the VT-25 is 1.2kHz to 25kHz, ensuring crisp and detailed high-frequency reproduction. The tweeter is sensitivity is rated at 90.3dB/1W/1m, providing excellent efficiency and output.

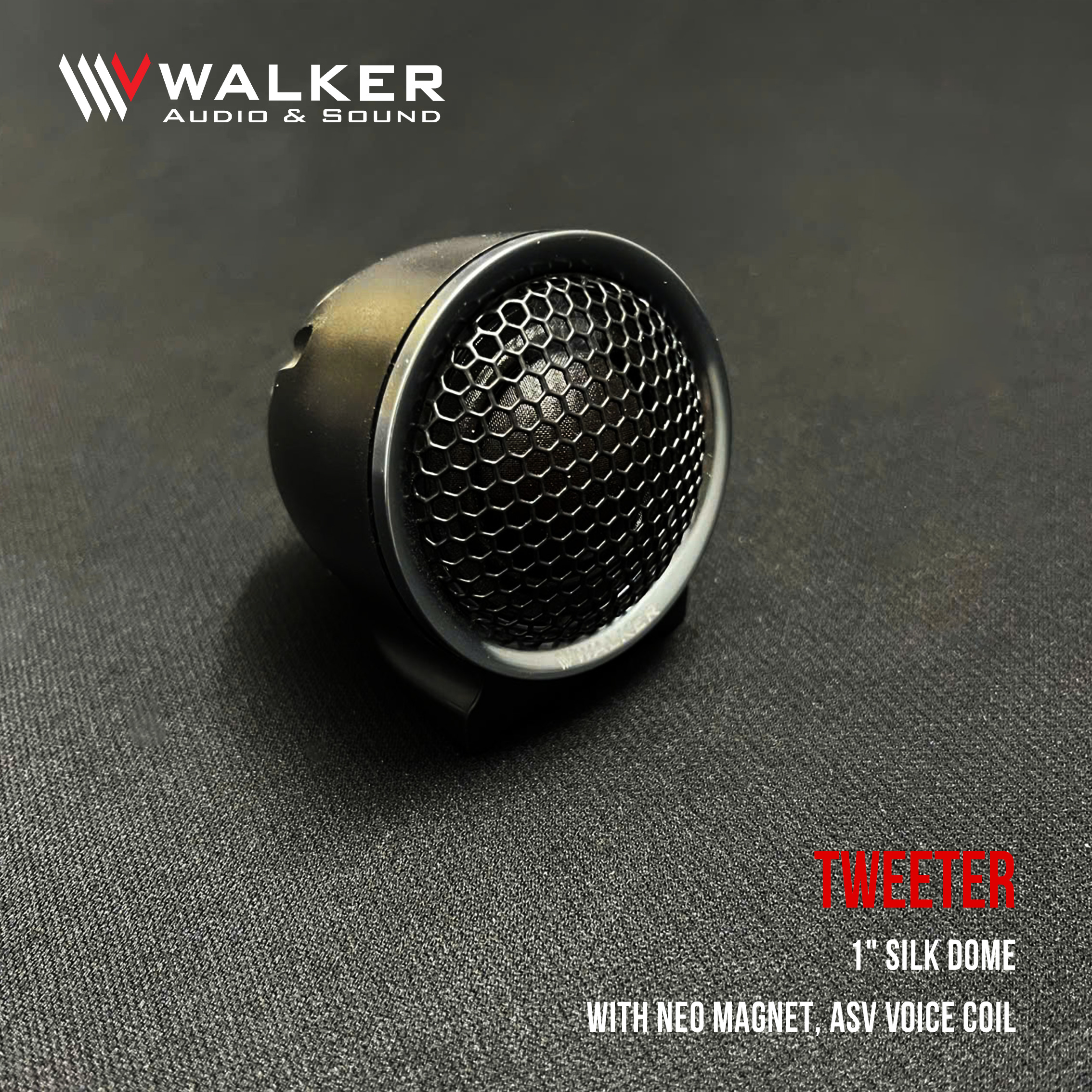

Driver Design:
At the heart of the VT-25 is a meticulously crafted 1-inch silk dome tweeter. The use of a Neo magnet structure allows for a compact and lightweight design without compromising on power handling and magnetic control. This advanced driver design ensures a smooth and extended high-frequency response, delivering exceptional clarity and detail.

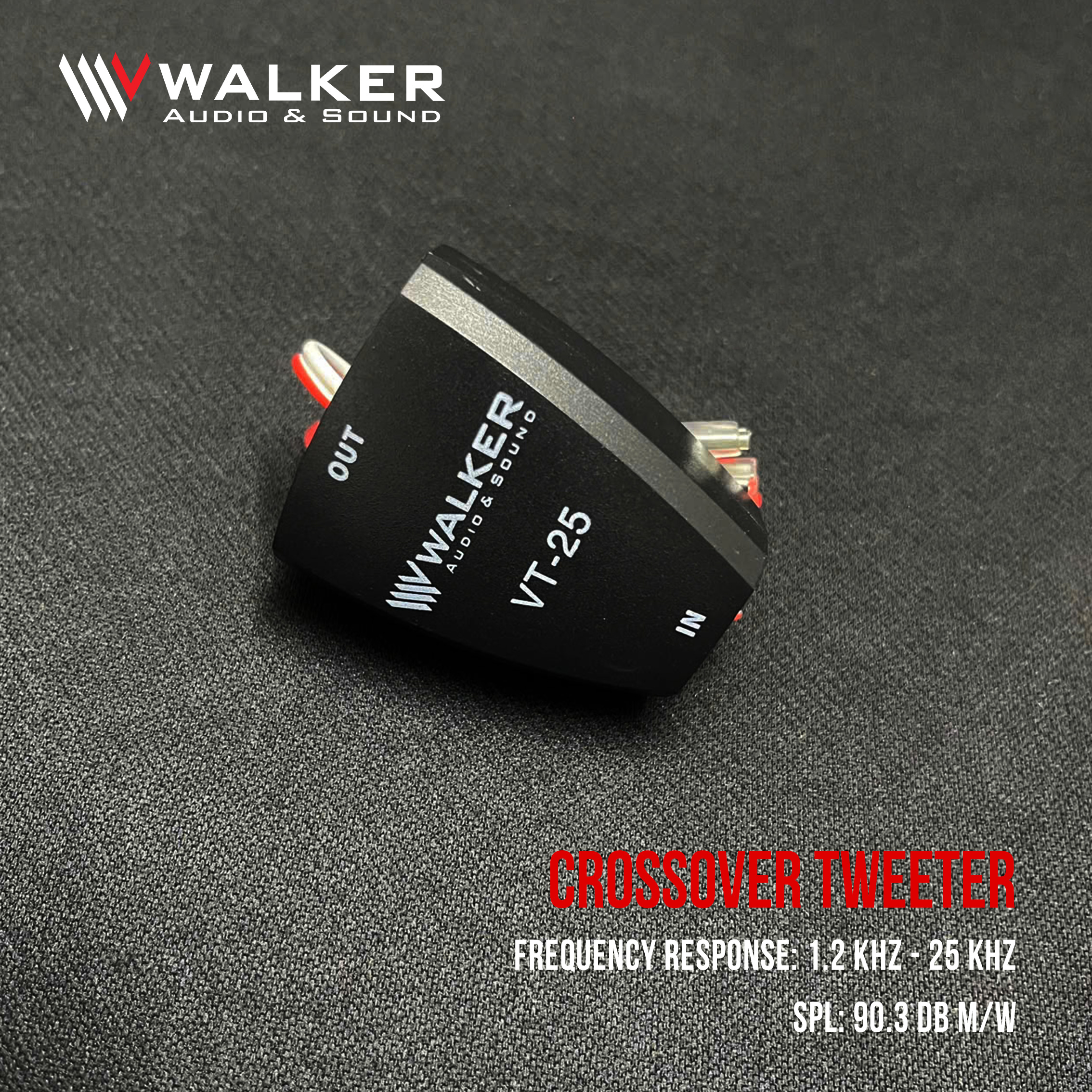

Crossover Integration:
The VT-25 is designed to seamlessly integrate into a component speaker system, working in conjunction with a dedicated crossover network. This crossover design ensures optimal frequency distribution, allowing the tweeter to handle the critical upper-frequency range while the woofer or midrange drivers handle the lower frequencies.
Enclosure and Mounting:
The VT-25 tweeter is housed in a durable and well-constructed enclosure, providing a stable and resonance-free platform for the driver. The compact size and versatile mounting options make the VT-25 easy to integrate into a variety of audio installations, including car audio systems, home theater setups, and professional sound reinforcement applications.
Conclusion:
The Walker VT-25 tweeter represents the brand is commitment to delivering exceptional sound quality and engineering excellence. With its impressive technical specifications, advanced driver design, and proven performance, the VT-25 is an excellent choice for audiophiles and sound professionals seeking to enhance the high-frequency reproduction in their audio systems.

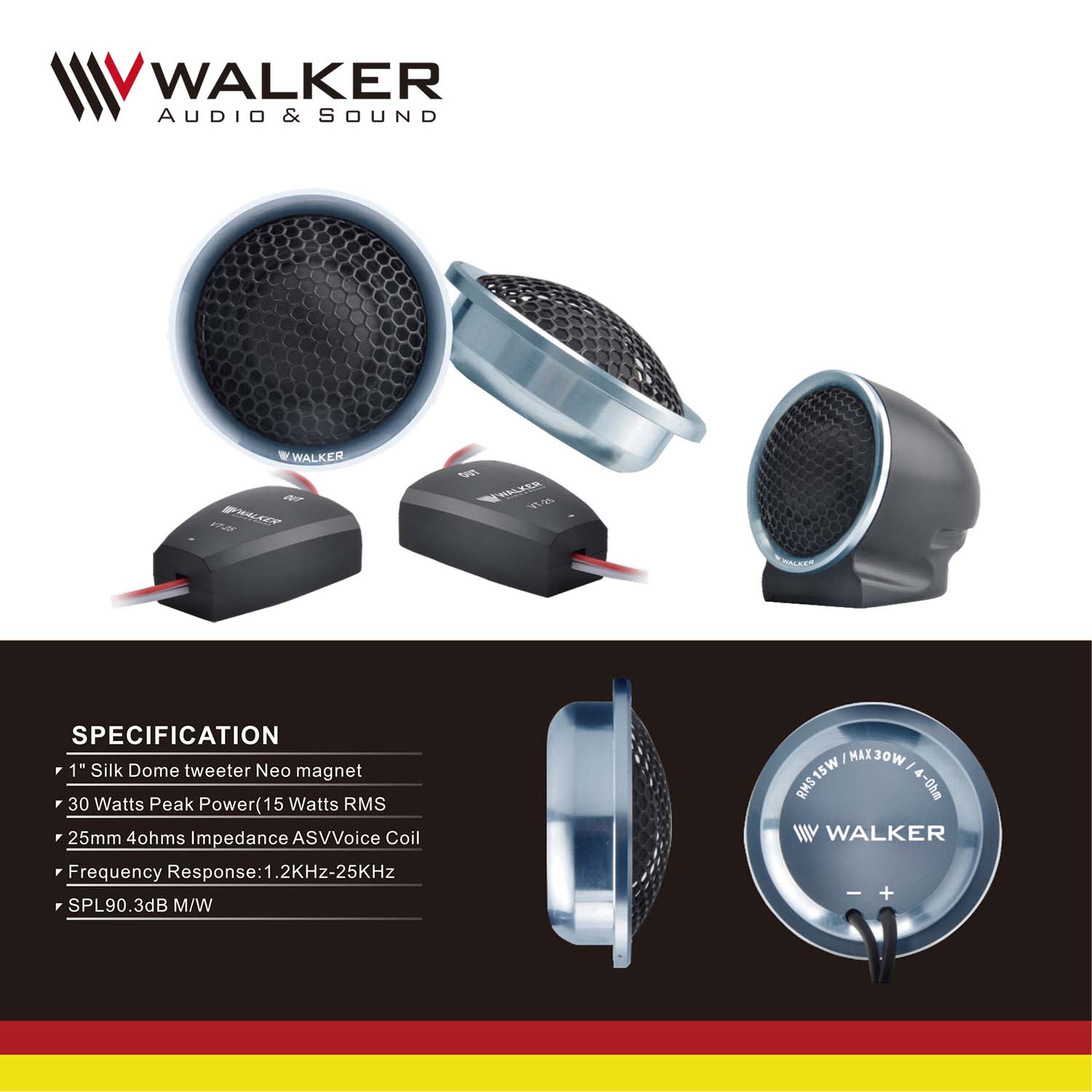

the detailed technical specifications for the Walker VT-25 tweeter:
Driver Specifications:
Diaphragm Material: 1" Silk Dome
Magnet Structure: Neo Magnet
Voice Coil: 25mm 4-ohms ASV (Aluminum Voice Coil)
Power Handling:
Peak Power: 30 Watts
RMS Power: 15 Watts

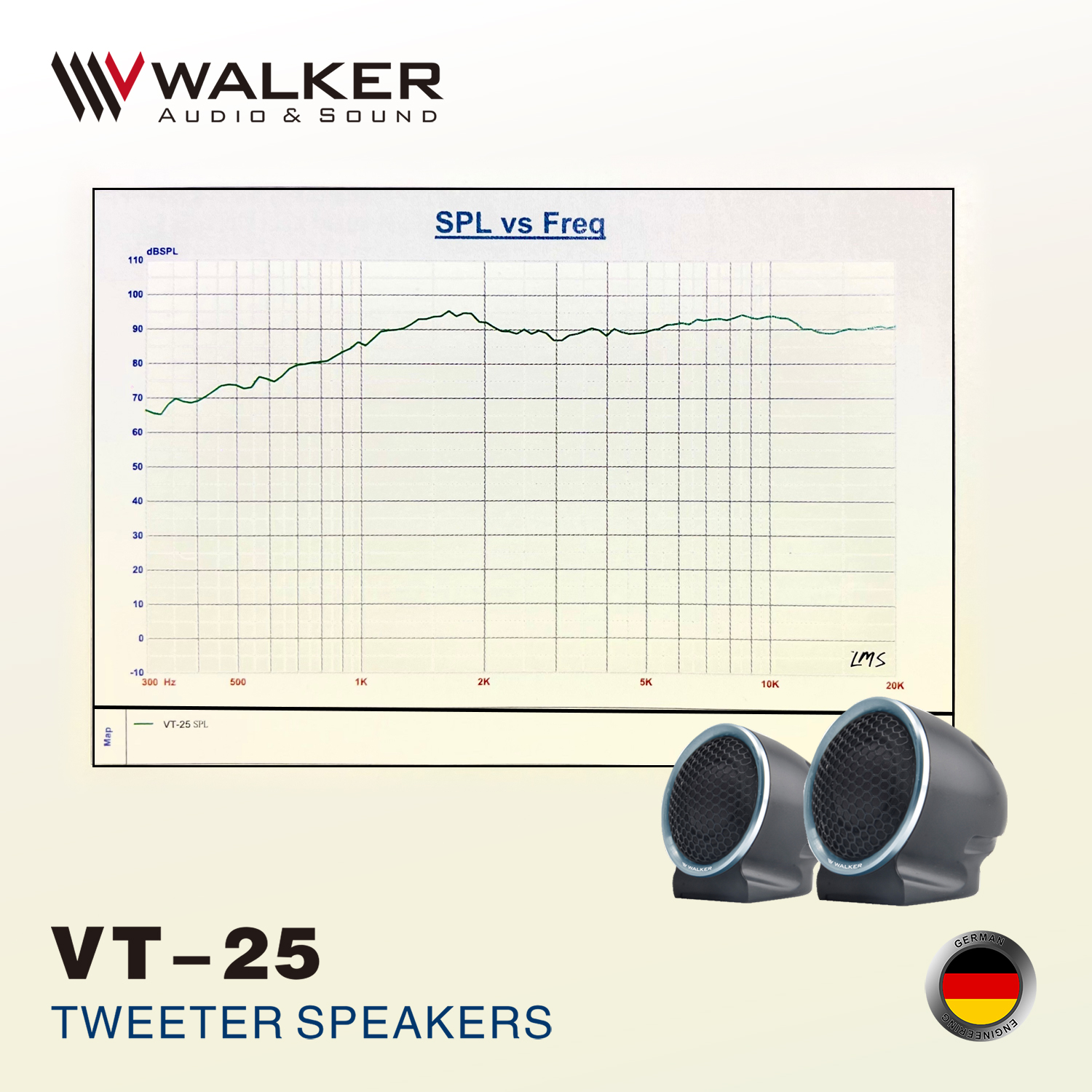

Frequency Response:
Frequency Range: 1.2kHz - 25kHz
Sensitivity:
SPL: 90.3dB 1W/1m
Mechanical Specifications:
Mounting Depth: 30mm
Cutout Diameter: 57mm
Overall Diameter: 70mm
Construction and Materials:
Tweeter Enclosure: Durable polymer construction
Grille: Magnetic hex-cell design for optimal acoustic transparency
Mounting Hardware: Included for secure installation
Crossover Integration:
The Walker VT-25 is designed to seamlessly integrate into a component speaker system, working in conjunction with a dedicated crossover network. The crossover ensures optimal frequency distribution, allowing the tweeter to handle the critical upper-frequency range while the woofer or midrange drivers handle the lower frequencies.
This advanced crossover design maximizes the efficiency and coherence of the overall speaker system, delivering a well-balanced and natural soundstage.
Overall, the Walker VT-25 tweeter is a meticulously engineered, high-performance component that combines advanced driver technology, robust construction, and proven crossover design. Its impressive technical specifications and attention to detail make it an exceptional choice for discerning audio enthusiasts and professional sound engineers alike.
